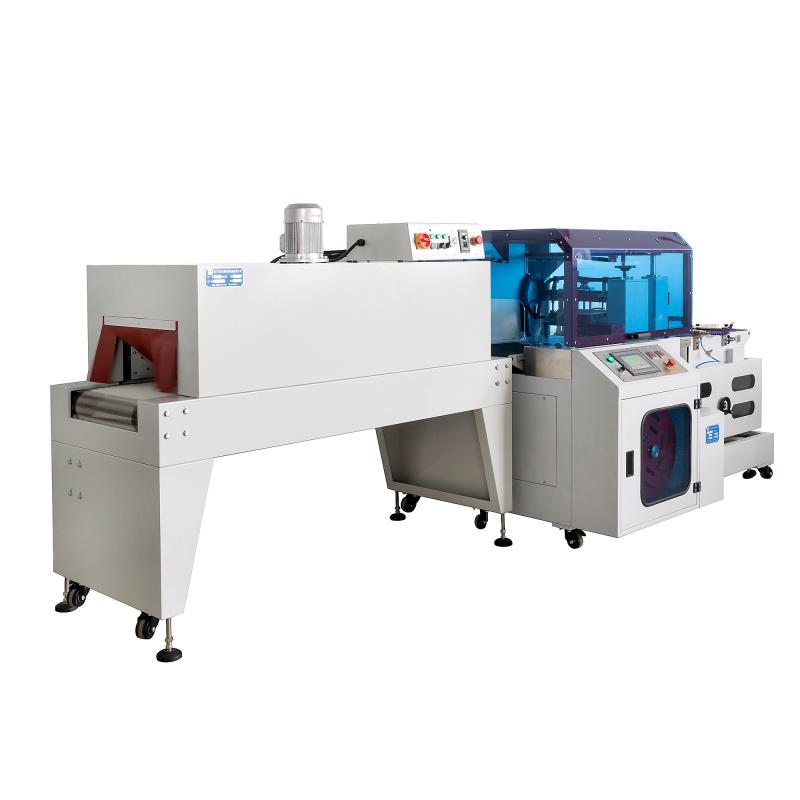

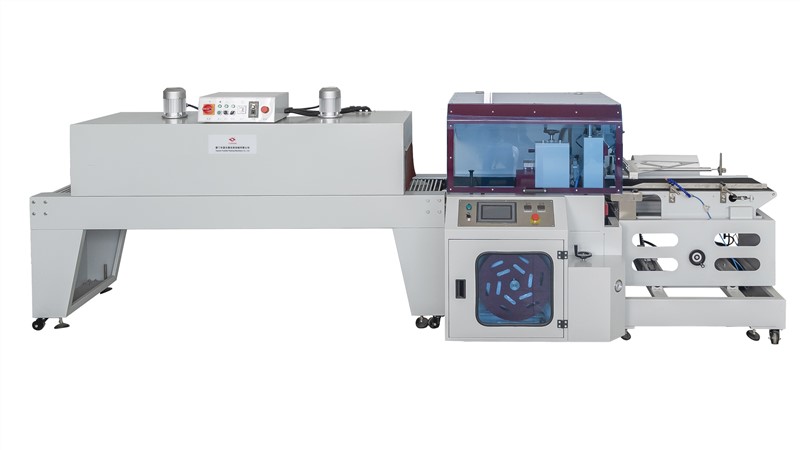

Fully automatic side sealer sealing heat shrink film packing packaging wrapping wrap packmachine
Voltage:220V/50Hz
Power Unit:1.8K W
Air pressure:4-6K g/ cm²
Net weight:695K G

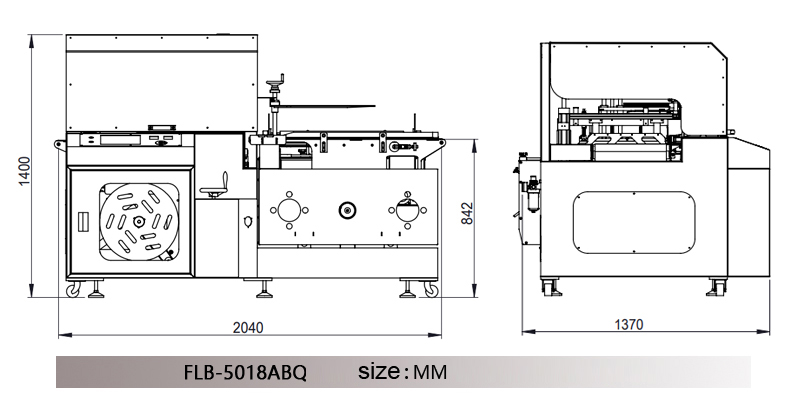

Machine overall size:L2045*W(1350-1570)*H1395(mm)
Sealing cutter size:500(mm)
Packing size:L(100~unlimited)*W(60~380)*H(5~160)mm
Packing speed:20-40(Pack/min)
Product Details
Questions
Online Feedback
Technology
*Adopting Taiwan HIWIN line slide rail,Sealing cutter work stable from vertical or up to down.Sealing line is firm. *Especial sealing edge design,simple construction, lifter adjusting easy,this can apply to infinite packing.
*The sealing line is always in the middle of packing products.
*Lifting speed of sealing blade is adjustable speed, adapting to different heights of product.
*Adopt level and vertical photoelectric eye,can switch easyly.It is fast to do packing for thin and samll products. Very easy to finish packing.
*Adopt most advanced PLC programming,easy operating ,which have safety protection and alarm function.
*Applied to single or combined package for products in different shapes.
Usable range
Applied to bulk production in industy like tea leaf, food, wallpaper, hardware, cosmetics, medicine, ceramics, beverages, rubber products, adhesive tape, bathing, building materials,chemical products,electronics, color box, greeting cards, photo albums, photo frames and other handicrafts.
Technical data
We reserved the rights to modify the machine parameters,and actual parameter will subject to final confirmation.
------------------------------------------------------------------
